Highest capacity aluminium track system

Aluminum track system for high panels with mechanically guided rollers plus curves & switches for maximum operational ease. It is a uni-direction track system which ensures the panels are stowed at its designated storage location by a combination of mechanically guided rollers and junctions. High flexibility of applications to fully utilize the floor space. At such heights, it is one of its kind track system with simple installation and but high operational efficiency while having longevity of an aluminum track system. It can carry up to loads of 1000KGs per panel.

  • High carrying capacity aluminium track system
  • Self-guided track system with electrical junctions option
  • Up to 1000KGs carrying load per panel
  • Robust common roller body shared with SR2000

Highest carrying capacity aluminium track system for easy operation

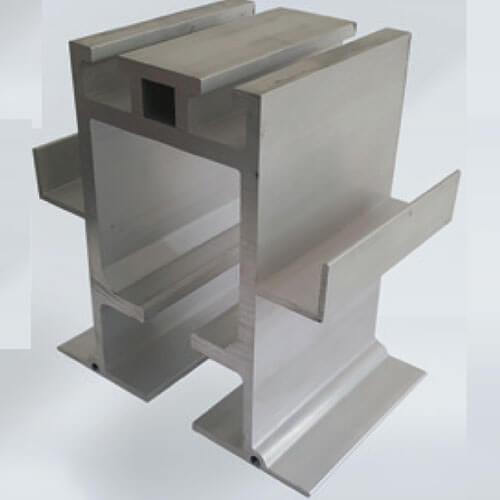

SR1000 is an aluminium track system in which its rollers are mechanically guided at the junctions. Operation of the panels are designed with this in mind making it simple and direct to use. Although the track is made of aluminium, it designed for higher loads due to the increased strength through the improved track profile & roller design.

Quick simplified installation

The SR1000 track system is designed with onsite application in mind. The track is quick and simple to install making this an efficient system. As such high capacity tracks are commonly applied for huge spaces (such as exhibition hall, ballrooms, etc.), the implementation of SR1000 allows the project to be completed in a timely fashion, reducing complications. Moreover, it is quicker to adapt to refurbishments & service requirements.

Sound advice right form the initial planning phase

Whether for a new building, a conversion or a refurbishment, our professional, experienced, helpful staff can assist you in the early stage of layout design to meet the ever-changing needs to building application. We will assist you in your specific project with individual support to ensure a fully integrated approach to planning, design and installation.

Features

  • Installation with direct suspension support
  • Quick and easy buffer/ceiling installation
  • Integrated track covers including junctions
  • Smooth movement with high capacity 4 wheeled rollers
  • Roller with self-straightening design

Finishes

  • Standard mill finish
  • Powder coated to RAL colors (optional)
  • Natural anodised (optional)

Technical Data

  • Maximum loading: 1000KGs (per panel of 2 rollers)
  • Maximum height: 8m up to 10m
  • Track Material: Lightweight aluminium with robust steel junctions
  • Roller Material: Rust free steel body with high capacity 4-wheeled roller bearings
  • Roller Type: Uni-directional, self-guiding rollers
  • Parking layout: High flexibility & self-guiding with the use of mechanical guides in junctions
  • Junctions: Electrical junctions possible as option
