Varitrans Straightline movable glass wall system
This movable wall system creates an open room ambience while safely separating functional zones. With its bespoke straightline profiles, it exudes excellence in craftsmanship, attractive design, solid robustness and lasting quality. Effortless operation can be further facilitated by functional elements such as integrated door closers, lock status indicators and door holders, as required. Whether straight or angled, it adapts flexibly to individual requirements and is ideally suited to both refurbishment projects and new builds.
Convincing combination of aesthetic elegance and functional efficiency
The Varitrans Straightline exudes excellence with its elegant craftsmanship, attractive design, solid robustness and lasting quality. A multitude of innovative safety, security monitoring and locking system solutions ensure reliable operation, with the extensive expertise of the DORMA Hüppe Service team always there to provide support. The operating options can be readily aligned to prevailing requirements, enabling various functional zones to be effortlessly, safely and quickly separated or merged.
Manual operation – easy, safe and reliable

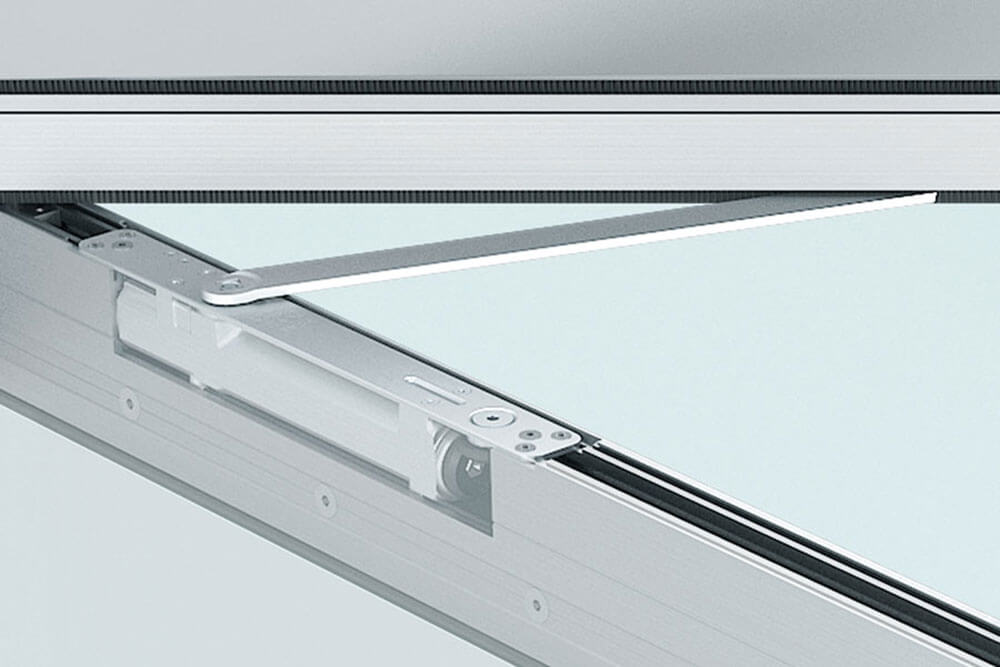

The manual version impresses in terms of its easy operability and reliable functionality. The locking components, for example, are elegantly concealed in the frame profiles, with visual elegance further enhanced by an innovative door closer that is completely integrated within the door transom.
Optional extras add further operating ease, giving more control and enhanced safety and security.
Sound advice right from the initial planning phase
Whether for a new building, a conversion or a refurb, the decision in favour of a DORMA Hüppe movable wall system will ensure you reap the benefits of high product quality combined with the advisory expertise of our experienced, helpful staff.
We will assist you in your specific project with individual support and advanced architectural tools to ensure a fully integrated approach to planning, design and installation.
Features
- High stability and easy, error-free installation
- Multifunctional configuration flexibility: straight line, angled or polygonal layouts all possible
- Effortless manual operation
- Low running noise thanks to precision-engineered tracks of aluminium
- Elegant design with integrated functional elements
- Sustainability included: Covered by environmental product declaration (EPD) to ISO 14025 and EN 15804
Technical Data
- Clear height: max. 4,000 mm (operable pass door elements up to 3,600 mm)
- Element widths: max. 1,300 mm
- Glass: 10 and 12 mm TSG, optional up to 19 mm, LSG options
- Elements: Full wall elements, fixed panels, door elements (stationary and operable)
